Why does one die ship the next day while another of the same size waits four days? The answer never sits in a single line item; it is the sum of drawing preparation, revision rounds, die complexity and the workshop queue that week. This guide opens up the four variables that move the date.
Lead time is not one duration — it is four stages added together

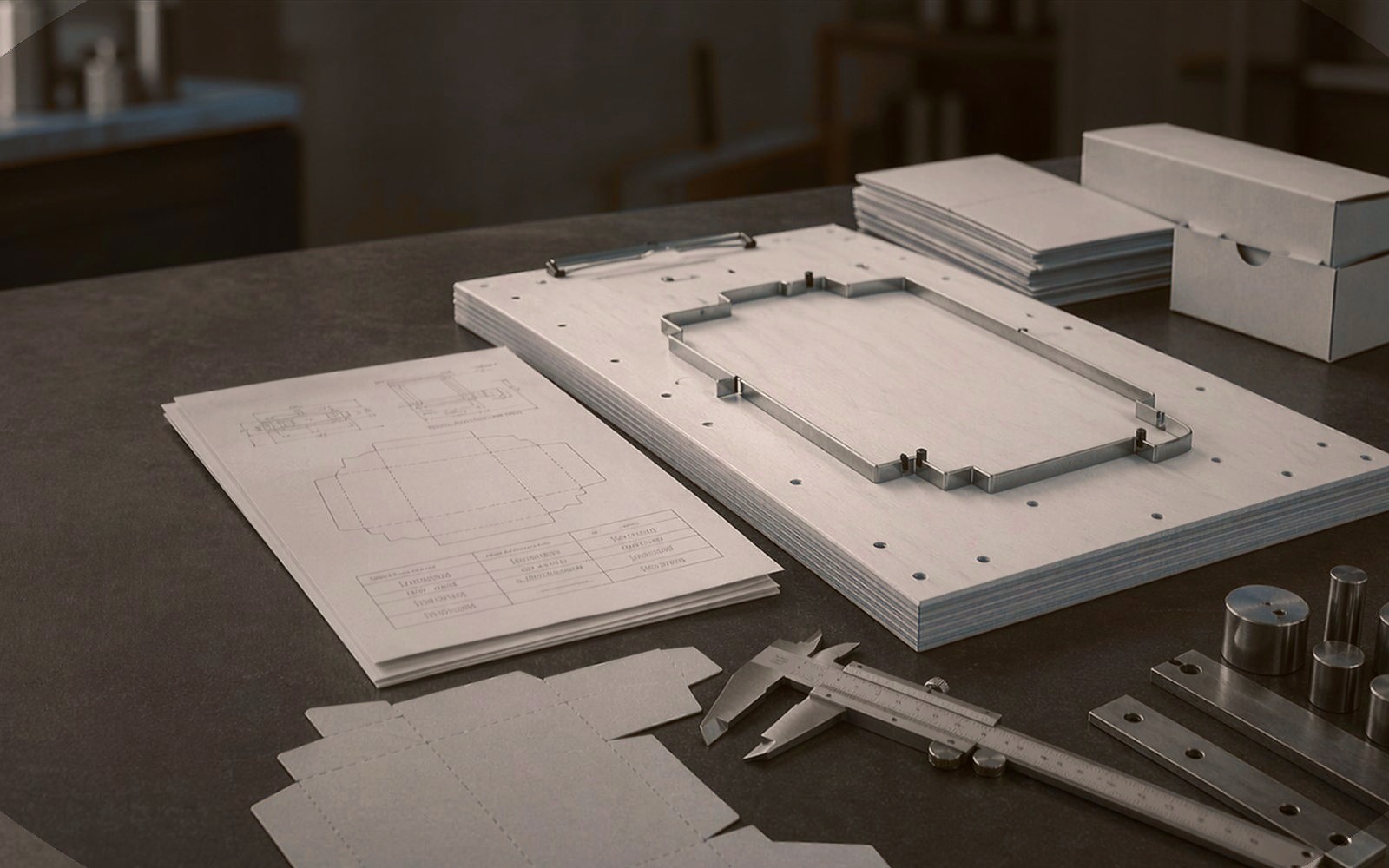

A cutting die passes through drawing preparation, laser cutting of the die board, rule bending and assembly, then rubbering and final checks. Laser cutting is usually the shortest stage; what really drives the schedule is getting the drawing production-ready and the hand work of bending and assembly.
That is why the honest answer to “how many days for a die?” cannot be given before seeing the file. A simple carton die arriving with a production-ready drawing and a multi-window display die measured from a photo do not move on the same calendar.
- Laser cutting time is a small share of the total lead time.
- Bending, assembly and rubbering are hand work and grow with complexity.
- A production-ready file is the single strongest input for a firm date.
The biggest variable: file clarity and revision rounds
A job arriving as a clean, dimensioned PDF, AI or DXF can reach drawing approval the same day. A job arriving as an unmeasured sketch, a low-resolution photo or an old sample first needs measuring and redrawing, then your approval — and every day spent waiting for approval is added to the delivery date one-to-one.
Revision rounds work the same way: a dimension change after production has started can scrap an already-cut board and already-bent rules. In that case the lead time is not extended — it restarts.
- Every day waiting for approval is added directly to the delivery date.
- A revision after production starts can reset the schedule to zero.
- A written confirmation that the latest file is final is the cheapest insurance.
Die complexity and material supply
The number of inner windows, tight-radius turns and the length of creasing and perforation lines directly extend bending and assembly. Standard 23.8 mm rule and 18 mm die board come from stock; a special rule height, a different edge hardness or special profile rubber adds supplier time to the schedule.
Corrugated board, gasket material and PVC/PET need a different rule and rubbering setup than a standard carton job. On these jobs, late material information means the right rule is ordered late.
- More windows and turns mean more hand-work hours.
- Non-standard rule and rubber add supplier lead time to the date.
- Material details in the first message let supply run parallel to production.
The workshop queue and urgent-job planning
The workshop’s queue that week is a variable independent of your job’s technical hours. On urgent work the queue can be reordered, but the sequence of drawing, approval, production and checking is never skipped — speed must not come before the die running correctly on the machine.
The most useful piece of information on an urgent request is a clear answer to “when, at the latest, must it be in your hands?”. An hour-level target lets the workshop plan the queue realistically, and hand delivery instead of courier can win back the last day.
- Asking about the current workshop load gets you a realistic date, not an optimistic one.
- Urgent jobs need the latest acceptable date and hour stated explicitly.
- The courier-versus-pickup choice can save a full day on a tight schedule.
Quote details we clarify together
When the file, material, quantity and deadline are clear, the quote conversation moves faster and with less back-and-forth.
- Current revision file
- Material and quantity details
- Critical dimensions or production notes
- Deadline expectation and delivery preference
