The blade is often blamed first when a thermoformed part trims crooked or stress-whitens at a corner. In practice, seating in the thermoform trim cutting die, flange support and forming variation frequently combine to create the defect.

Does the part seat the same way every cycle?

If the formed wall or base misses its reference, the flange can shift sideways during cutting. One stop may not prevent rotation. Orientation should be unambiguous and references should locate without forcing the part.

Seating is checked with a simple test: the part is loaded into the tool five times in a row and each time the flange is checked against the same mark. A single stop does not prevent the part from rotating; two opposing stops and a mark that makes the loading direction obvious give the same seating even when the operator works fast.

  • The part is loaded five times and the flange checked against the same mark.
  • Two opposing stops prevent rotation better than a single one.
  • The loading direction is marked on the tool so it cannot be confused.

Is the flange supported around the trim line?

A broad flexible flange can lift under pressure. Without support close to the cutting path, the edge becomes wavy or one corner finishes at a different size. Support should stabilize the perimeter without marking the formed surface.

Support follows the contour the cutting line takes, not the outer perimeter of the part; long straight flanges are the first to lift when left unsupported. Where support meets a visible area it is chosen so it leaves no mark, and flange lift is checked on the first part with side light.

  • Support follows the cutting-line contour; intermediate support is added on long straight flanges.
  • Support that meets a visible surface must leave no mark.
  • Flange lift is checked on the first part with side light.

Corner whitening indicates material stress

If PET or PVC has already thinned at a formed corner, cutting stress can reveal whitening and cracking. A very small radius, thickness variation or cold brittle stock can increase the effect.

The corner is the thinnest section of the formed part; the material has stretched most there and is at its most brittle. Because cold stock behaves more brittly, parts are left to reach workshop temperature before cutting; where the radius cannot be enlarged, the rule form and cutting direction are reviewed together.

  • The corner is the thinnest section; whitening starts there first.
  • Cold stock is left to reach workshop temperature before cutting.
  • Where the radius cannot grow, rule form and cutting direction are changed.

Use a sample set to isolate the source

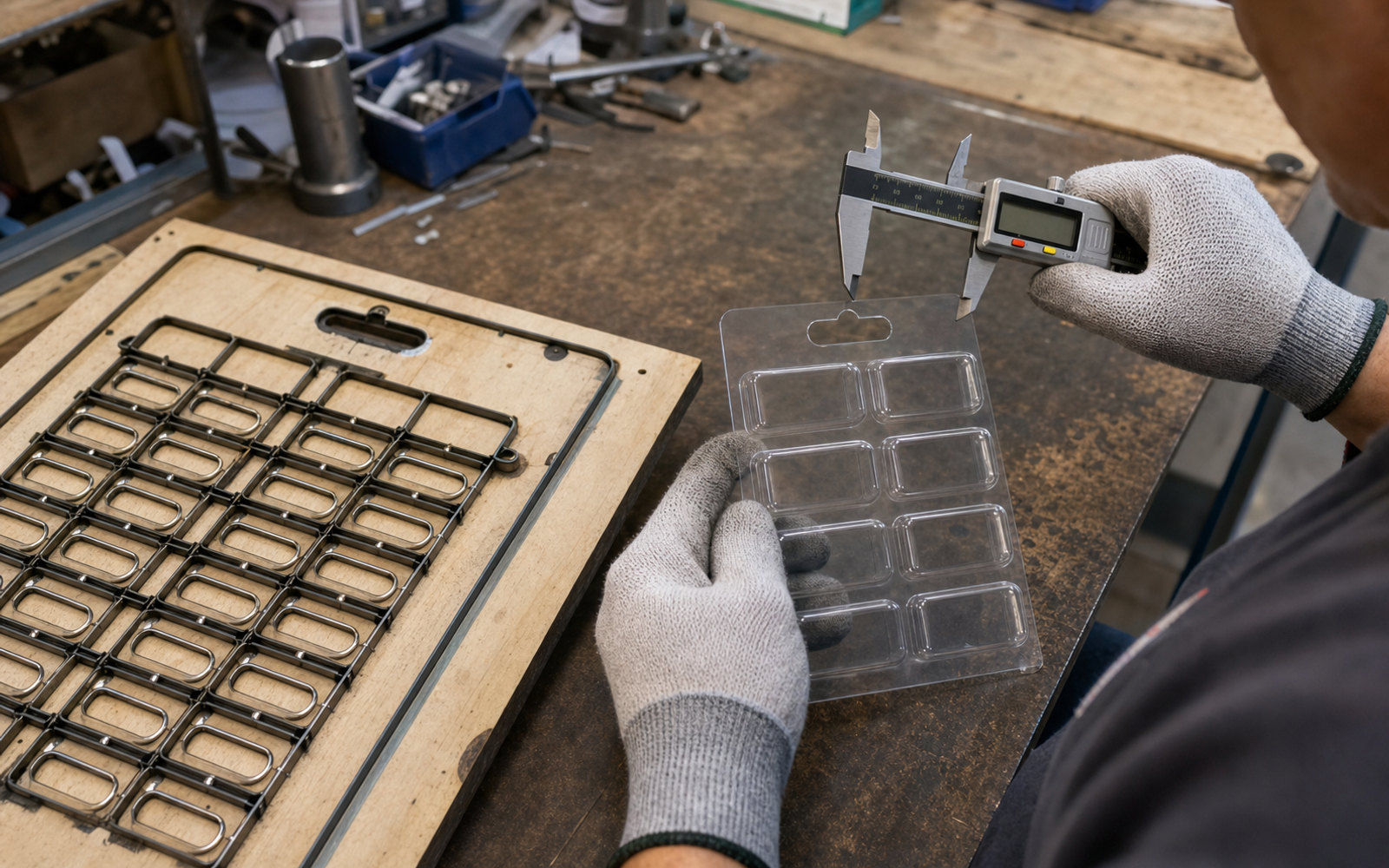

Test parts from different forming batches in the same tool. A defect that stays at one die position points to seating or rule; a defect limited to certain parts points to forming or material variation. Pair measurements with photographs.

A faulty part is not thrown away; it is kept with its tool position and batch marked. When parts from different shifts and batches are compared in one table, it becomes clear whether the problem comes from the tool or from forming variation; the measurement result is recorded together with a photograph.

  • A faulty part is kept with its tool position and batch marked.
  • Different shifts and batches are compared in one table.
  • The measurement result is recorded with a photograph.

Application note

Send a clean sample and a defective sample together so trim-tool effects can be separated from thermoforming variation.

  • Use the current material and dimensions.
  • Compare a clean sample with the defective sample.
  • Record the decision with photographs and drawings.
