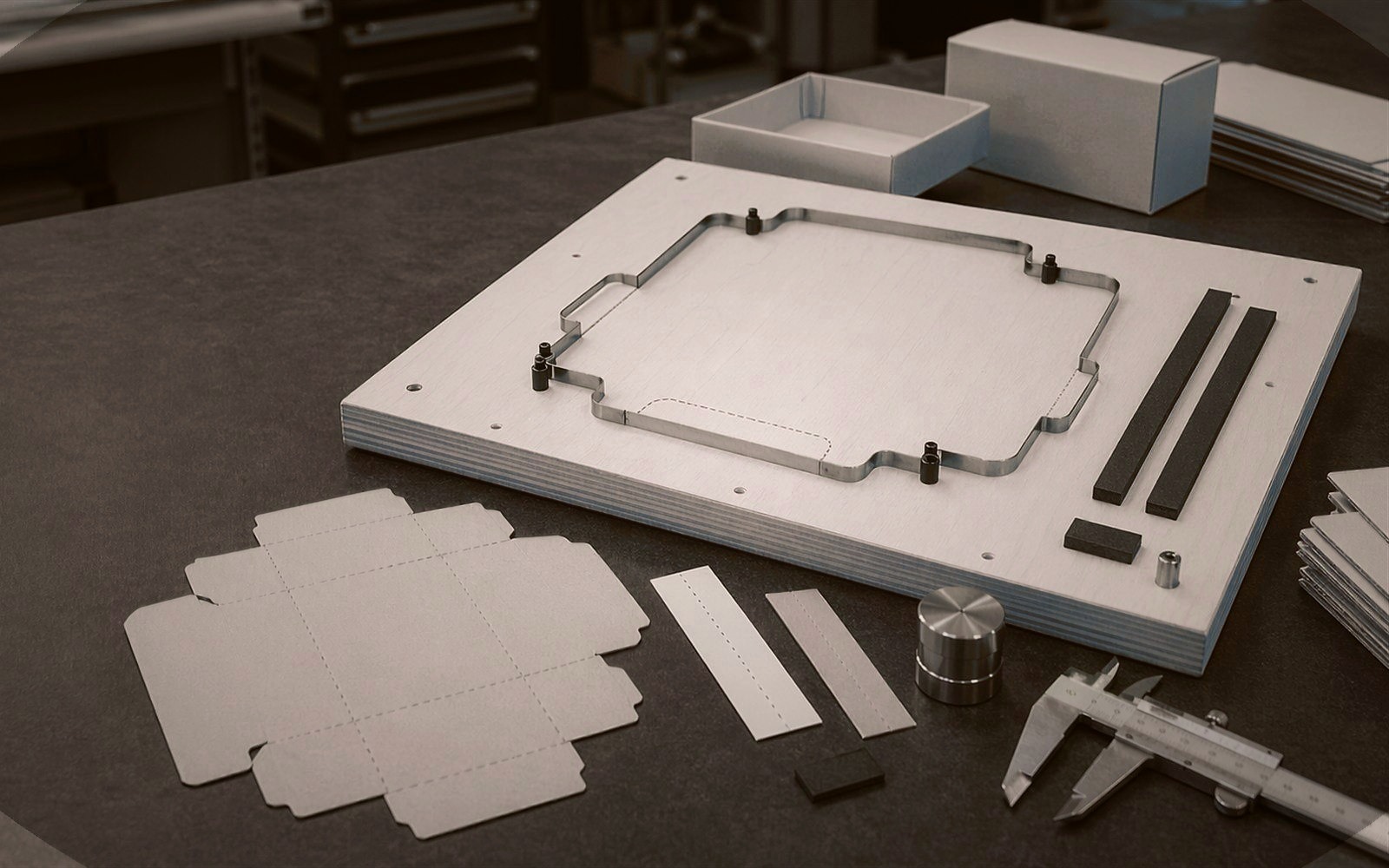

Both are steel strips sitting in the same die — but their jobs are opposites. Creasing rule makes board foldable without cutting it; perforation rule cuts so the line can be torn in a controlled way. This guide explains the technique behind each line, where each is used, and how to mark them in a drawing.

Creasing: a fold channel without breaking the fibres

Creasing rule does not cut; it is a steel strip with a blunt, rounded edge. It works together with the channel facing it and forms the fold line by compressing the board. With a correct crease the board folds exactly on the line without fibre breakage — and the print does not crack along the fold.

Channel width is calculated from the grammage; the practical rule is roughly 1.5 × board caliper + creasing rule thickness. Too narrow a channel cracks the board; too wide a channel lets the fold line wander.

  • Creasing rule has a blunt edge; it compresses rather than cuts.
  • Channel width ≈ 1.5 × board caliper + rule thickness.
  • A correct crease prevents print cracking along the fold.

Perforation: a cut sequence that controls tearing

Perforation rule is a cutting strip made of teeth and gaps: the cut segments make tearing easy, the uncut bridges hold the piece in place. The tooth/gap ratio sets the behaviour — fine teeth like 1×1 mm tear easily, coarse teeth like 3×3 mm leave a stronger bond.

The right ratio comes from the product’s job: it must survive shelf handling yet separate cleanly when the user pulls. That balance is confirmed in a trial on the real material, not on paper.

  • The tooth/gap ratio directly sets the tearing resistance.
  • Fine teeth tear easily; coarse teeth give handling strength.
  • The final ratio is approved through a trial on the real material.

Where each belongs: folds stay whole, perforations come apart

Box body folds, lid hinges and glue-flap bends are creases. Tear strips, coupons, easy-open lids and “tear here” lines are perforations. The decision is simple: if the line must stay whole for the product’s life, crease it; if it will one day be torn, perforate it.

On hard, thick materials the two techniques combine: cut-crease alternates short cuts with creasing to ease folding on surfaces like corrugated board that resist a plain crease.

  • A line that folds and stays whole is a crease; a line that tears is a perforation.
  • Tear strips and coupon lines are the typical perforation cases.
  • On corrugated board, cut-crease combinations ease the fold.

Marking in the drawing and the order note

Creases and perforations are never drawn in the same style: creases in a different colour or dashed, perforations in a third style — ideally with a tooth note such as “perforation 2×2 mm”. Two identical-looking lines where one turns out to be a crease is an unrecoverable production error.

If the order states the board grammage and the product’s purpose, the workshop selects the creasing channel width and the perforation tooth ratio accordingly — and a sample cut settles any line that remains in doubt.

  • Crease and perforation get separate layers, colours and notes.
  • Add the tooth/gap dimension as a note on every perforation line.
  • Grammage and use case drive the channel and tooth selection.
