Cutting dies, or steel rule dies, cut printed paper, board, corrugated and label sheets to shape, form the fold lines and add tear lines. Steel rules are bent and fitted into laser-cut slots in a board, usually 18 mm plywood, with ejection rubber around them. Each press stroke transfers every cut and fold line of a carton, label or folder at once.
A die that runs well rests on three agreed inputs: the approved dieline, the measured material caliper and the target press. Settled early, they give designer, printer and die maker one reference, and press setup starts from measurement rather than guesswork.
What is a cutting die?
A cutting rule is the steel strip that cuts a printed sheet to shape; rules fitted into a dieboard form the cutting die, or steel rule die. The press squeezes the sheet between die and counter plate: sharp cutting rules cut outlines and windows, round-edged creasing rules form folds and perforating rules leave tear lines.
Everyday names overlap: “cutting die”, “steel rule die”, “carton die” and “laser-cut die” usually mean the same tool, the last named after its laser-cut board slots. Rule in coils is the steel strip as supplied, before cutting and bending. In a replacement request, say whether one rule or the whole die needs renewing; it speeds up the job.
Two mix-ups are common. A guillotine knife, often called by a machine brand name in Turkish shops, trims stacks of sheets in straight lines and is resharpened; shaped parts need a die. An offset printing plate, the aluminium plate that carries the image on press, is a different product, although Turkish gives it a similar name. Embossing and hot foil stamping dies are separate tools again, though one package may need them all.
Turkish buyers call these tools “matbaa bıçakları”, literally “printing knives”, while the UK and much of Europe say “cutting forme”. Whatever the name, send the drawing and material specification with it to avoid misunderstandings.
Where are cutting dies used?
Any job that takes a shaped part from a printed or plain sheet uses a cutting die. Common groups, and what the die settles in each:
- Folding cartons: panels, closure locks, dust flaps, glue flap and window. Lid fit depends on board caliper and folding order; state whether dimensions are internal or external.
- Corrugated packaging: shipping cases, dividers, trays and display stands. Flute direction and crush behaviour change rule thickness, crease type and rubber; a load-bearing display shelf also needs a structural calculation.
- Sheet labels and stickers: the face layer is cut and the siliconised liner stays intact. Describe the label paper or film, adhesive and liner together.
- Presentation and pocket folders: pocket locks, business card slots and a folding spine. Lock geometry and board caliper are planned together so a filled pocket keeps its shape.
- Hang tags, invitations and promotional items: custom outline, hang hole, corner radius and tear-off coupon.
- Jigsaw puzzles and game pieces: interlocking pieces, tight radii and closely spaced cut lines.
In every group the die is prepared the same way: cut, crease and perforation lines are defined separately, and the measured material caliper and target press are known from the start.
Flatbed, rotary and digital cutting compared
Flatbed die cutting: the method cutting dies are made for. The die sits in a flat chase, and each stroke presses the sheet between die and counter plate. Automatic flatbed die cutters (BOBST-type lines), platen presses and cylinder presses run flat dies. The chase and usable cutting area of the press set the die size, so give them first in the order.
Rotary die cutting: the tooling sits on a cylinder and cuts continuously, usually from a roll; flexible dies on magnetic cylinders belong to this system. İkram Lazer does not make, supply or repair rotary, flexible or magnetic-cylinder dies; this comparison only explains the difference.
Digital (dieless) cutting: a flatbed plotter traces each path in the file with knife and creasing tools. With no die to prepare, it suits samples, prototypes and short runs of designs still in flux. Longer runs take time sheet by sheet; once a design is approved and repeats are planned, a flat die is often more efficient.
No quantity threshold fits every job. Compare the real material, total rule length, number of ups, crease needs and repeats together. A digital sample confirms shape and assembly; the crease and cut-edge behaviour of the production die shows on its first sheets.

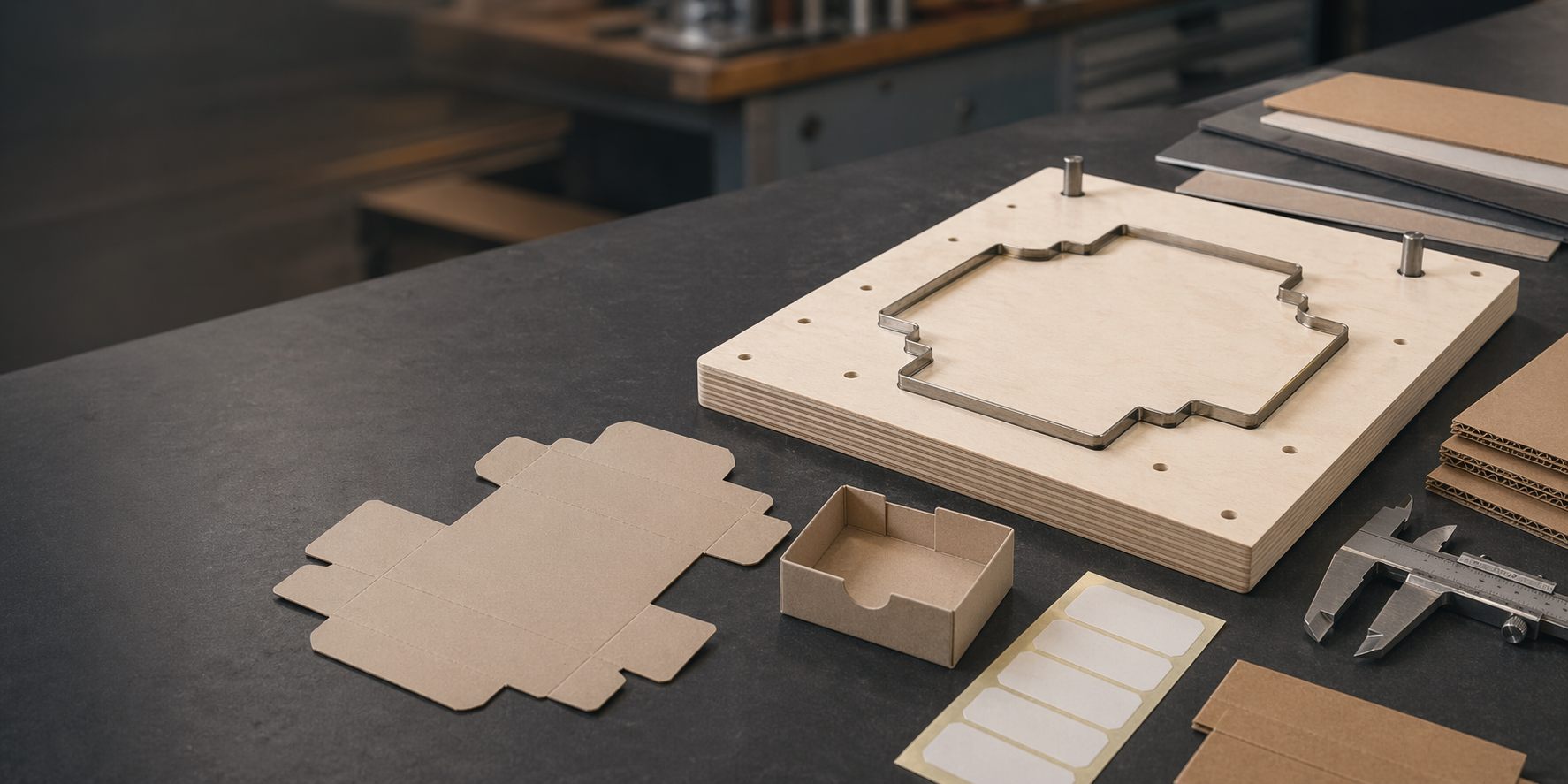

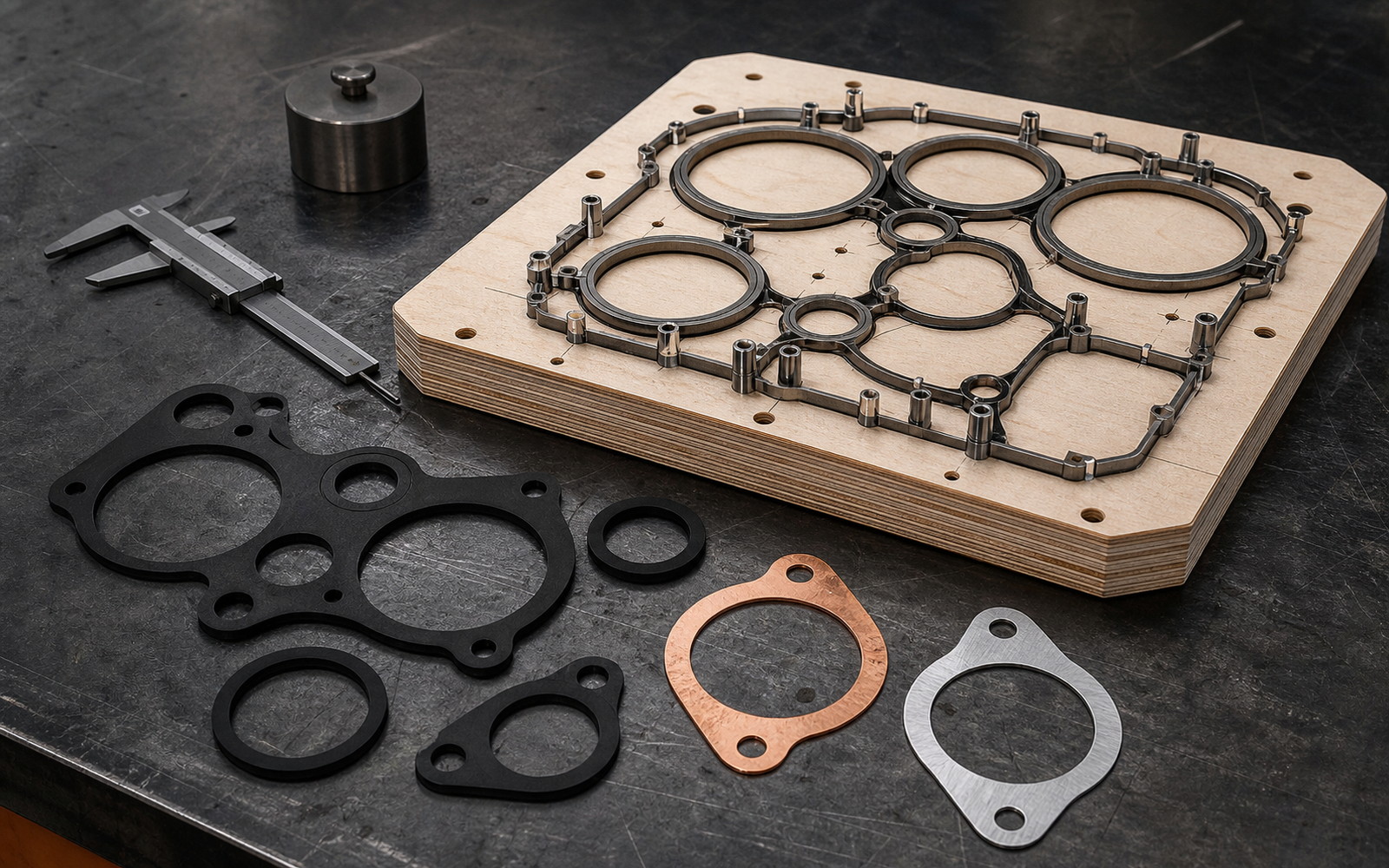

What parts make up a cutting die?
- Dieboard: usually 18 mm plywood in flatbed dies. Laser-cut slots match the rule thickness, so each rule sits tight and stays put on every stroke.
- Bridges: a closed contour cut right through would let the centre drop out, so the slot keeps uncut bridges and the rule gets matching notches in its base. Bridge positions are set in tool design and leave no mark on the product edge.
- Steel rules: cutting, creasing, perforating and combination rules are cut to length, bent to the drawing and driven into the slots; punches can handle hang holes and small circles.
- Ejection rubber: bonded beside the rules, it compresses to hold the sheet and pushes it off the rules as the die opens. It usually stands 1.5–2 mm above the rule edge; softer grades suit open areas, firmer ones narrow channels and perforations.
- Crease counter: a channelled creasing matrix or a machined phenolic (pertinax) plate bonded to the counter plate, so the creasing rule forms a clean fold.
- Stripping and blanking tools: extra tooling on automatic lines that separates waste and product; the quotation states whether they are included.
Rubber colours mean different hardnesses at different manufacturers, so choose by hardness, profile and height rather than colour.
Choosing ejection rubber hardness and placement zone by zone is covered in the rubbering guide.
Types of cutting rule: cutting, creasing, perforating and combination
Rules for different tasks stand side by side in one die; the drawing assigns each line its rule by layer or colour.
- Cutting rule: sharp-edged; it cuts the outline, windows and slots through the full material thickness.
- Creasing rule: round-edged, it presses the board into the matching channel to form a fold without cutting. A cut fold weakens the package, so the creasing rule is lower than the cutting rule.
- Perforating rule: alternating cuts and ties, named by their lengths: a 3 × 1 pattern repeats a 3 mm cut and a 1 mm tie. It forms coupons, tear lines and easy-open features.
- Combination rule: cut and crease sections on one line, easing folds in heavy board and corrugated.
- Zipper rule: forms a tear strip so the box opens easily.
- Punch: replaces rule for hard-to-bend details such as hang holes and small circles.
Kiss-cutting is a setting more than a rule type. On sheet labels the rule cuts face material and adhesive and leaves the siliconised liner intact, so rule height, rubber and press setup must be right together. On the first sheets, check that labels lift as easily at the sheet edge as in the middle.
Rule dimensions: height, thickness and edge
A cutting rule has three dimensions: height, thickness in points and edge profile. Give each on its own order line, stating which die line it applies to.
Height
Height runs from the base of the rule to its working edge. The standard flatbed cutting rule for carton and packaging work is 23.80 mm high, and the press die setting is built around it. Creasing rules are lower because they do not cut: start from the cutting rule height minus the board caliper. The barcode cutting rule for sheet labels is 12 mm high; Turkish shops call it “12’lik” after that height, not a label count.
Thickness (points)
Thickness is the distance between the two broad faces of the steel strip, given in points (pt):
- 1.5 pt ≈ 0.53 mm: barcode cutting rules and closely spaced label contours.
- 2 pt = 0.71 mm: the most common thickness for folding cartons, labels and presentation folders.
- 3 pt = 1.07 mm: corrugated board and thicker, stiffer materials.
- 4 pt = 1.42 mm: heavy work where the rule body carries more load.
Height and thickness are independent, so give both. A thinner rule eases tight turns and close contours; a thicker one gives a stronger body.
Edge profile and hardness
Most cutting rules have a centre bevel, ground equally from both sides; a side bevel keeps one face of the cut edge square. The body is soft enough to bend and the edge hard enough to resist wear. For coated board, laminates and abrasive materials, consider a hardened or coated edge, such as the titanium coating available on the barcode cutting rule.
To renew a rule in an existing die, give the old die reference, rule height and thickness. A photo locates the problem; an exact size needs a micrometer reading or the previous order record.
The separate guide to rule thickness and height explains how these specifications are described.

How material affects rule and die choice
A die is built around the measured material caliper. Grammage (g/m²) is weight per area; thickness needs its own measurement, and two boards of equal grammage can differ in caliper and need different crease heights. Give caliper in microns or millimetres, measured with a micrometer.
- Paperboard (bristol, duplex, kraft): ply structure, grain direction and moisture decide fold quality; folds with and across the grain behave differently.
- Corrugated board: flute type (E, B, C and others) and flute direction change rule thickness, crease type and rubber; crush under pressure is assessed separately.
- Film lamination, varnish and other coatings: coated surfaces crack more readily at the fold, so the die is planned for the sheet’s final coated state.
- Self-adhesive labels: face stock, adhesive and liner are separate layers; in kiss-cutting, where the rule stops decides the result.
- Plastic sheets and films: they stretch and spring back, so edge type and rubbering are chosen to suit.
Send samples in their final production build: printed, varnished or laminated sheets fold differently from uncoated ones. Log material batch changes in the job record. For regulated uses such as food contact, compliance comes from the material supplier’s documentation, not from the die shape.
How to prepare a dieline
The dieline is the single reference a die is made from, showing cut, crease and perforation lines at 1:1 scale as closed vector contours. A screenshot or JPEG can explain a detail; the die is made from a dimensioned vector file.
- Send the file at 1:1 scale, in millimetres, as vector PDF, AI, DXF or a packaging CAD format.
- Put cut, crease, perforation and kiss-cut lines on separate layers or spot colours, with a short colour legend in a corner of the file.
- Remove overlapping double lines, open contours, stray fragments and old revisions.
- Keep dimensions, notes and bleed off the die layer; in the print PDF, put the dieline on a non-printing layer.
- State whether box dimensions are internal or external; board caliper and fold allowances make them differ.
- Mark the grain or flute direction, the print direction and the gripper edge, which enters the press first.
- Put a revision number in the file name or drawing corner, and approve against that number.
Once the file opens at the other end, check that scale and layers have held. İkram Lazer works to the approved dieline with a 0.05 mm die dimensional tolerance, so die accuracy depends above all on drawing accuracy. Without a drawing, the carton net can be drawn from dimensions or a sample.
The carton dieline preparation article develops the drawing handoff in more detail.
Print-to-cut registration, bleed and sheet layout
Print-to-cut registration means the printed graphics land on the cut and fold lines. When designer, printer and die maker share one dieline and sheet reference, the die fits the print; artwork built on another revision makes even a correct die look shifted.
- Bleed: background colours and images run past the cut line; 3 mm is common in commercial print, while packaging follows the printer’s specification.
- Safe area: text, logos and barcodes stay inside the cut and fold lines.
- Sensitive areas: window edges, thin borders and graphics across folds show small shifts most; check them separately on the first sheets.
A multi-up layout repeats the same or different nets on one sheet. More ups save material, but press cutting area, gripper margin, spacing, waste paths and total rule length are calculated together. In suitable designs neighbouring parts share a common cut line, shortening the rule.
Rotating a part to save board also rotates its grain or flute direction, changing folding and box strength. Fix the sheet layout before the die is made.

Creasing rule, channel and counter dimensions
A clean fold needs three matched dimensions: creasing rule thickness and height, channel width and depth in the counter, and board caliper. The rule presses the board into the channel; in multi-ply board the inner plies separate in a controlled way and the outer surface folds without cracking.
Two common trade rules of thumb give a starting point:
- Channel width ≈ creasing rule thickness + 1.5 × board caliper. For 0.40 mm board and a 2 pt (0.71 mm) creasing rule: 0.71 + 0.60 ≈ 1.31 mm.
- Creasing rule height ≈ cutting rule height − board caliper. For a 23.80 mm cutting rule and 0.40 mm board, about 23.40 mm.
Channel depth starts at about the board caliper. These are starting values; board construction, coating and grain direction set the final adjustment. The counter is a ready-made creasing matrix or a machined phenolic plate on the counter plate. Record its size with the die, and recalculate the match whenever the board changes, even with the same outline.
Cracked folds, faint fold lines or a box that resists closing signal a mismatch between board, rule, channel and pressure. Extra pressure usually shifts the problem elsewhere; first find which dimension has drifted. Judge folding on the real box, folded in its intended sequence, not on a loose strip.
See when a machined pertinax counterplate is the right creasing counter.
Nicks, stripping and blanking
Nicks are uncut ties left by small notches ground into the cutting rule edge. They hold cut parts in the sheet through the press and part easily at stripping. Their number, position and width govern sheet transport and the edge mark: weak ties drop parts early, overly strong ones hinder separation and leave a visible mark.
Nicks tie the product to the sheet; bridges keep the dieboard in one piece. They serve different purposes and are assessed separately in the drawing.
- Stripping: removes waste between and inside the parts; narrow waste channels, small holes and inner windows need the most attention.
- Blanking: on lines with a blanking station, separates the cut products from the sheet skeleton and stacks them.
Plan the waste path at the design stage; a stubborn inner piece may need a geometry or tooling change. If an edge must stay free of nick marks, say so before the die is made.
How is a cutting die made?
A modern laser-cut die is made from the approved dieline in this order:
- Drawing check: open contours, double lines, scale and line types are checked; bridge positions, rule joints and rubber zones enter the tool design.
- Laser-cutting the slots: a CNC laser cuts the rule slots into the dieboard, matched in width to the rule thickness.
- Rule preparation and bending: steel strip is cut to length, bridge notches and nicks are ground in, and the rule is bent to the drawing.
- Assembly: the bent rules go into the slots; joints and tight turns are checked.
- Rubbering: ejection rubber of the right hardness and height for each zone is cut and bonded.
- Final check: dimensions, rule placement, crease counter and order scope are reviewed before dispatch.
Laser-cutting dieboard slots and laser-cutting packaging material directly are different processes, so a request for a “laser cutting die” should say which is meant. İkram Lazer has made flatbed steel rule cutting dies in Istanbul since 1988.
Die inspection confirms dimensions and assembly; the first sheets on the press show how the real material cuts, folds and separates. Agree in the order who runs the production trial, on which material, and how acceptance is recorded.
Checking the first sheets on the press
In make-ready the die is mounted in the chase, the counter plate and crease counter are fitted, register is set and pressure is balanced zone by zone. Procedures vary by press and tooling system; follow the press maker’s instructions and site safety rules.
On the first sheets, check:
- Is the cut complete everywhere? Sample the edges and the middle.
- Is the fold in the right place, and does the board fold without cracking?
- Does the sheet release cleanly, and does inner waste drop out?
- Is the cut in register with the print? Look at window and border edges.
- On labels, is the liner intact, and do labels lift equally easily across the sheet?
A flat blank can measure right yet fit badly once folded. Fold and glue a few nets and try locks, lids and panels in the intended order. Record the approved revision, material, counter layout and settings; if your workflow allows, keep a labelled approval sample.

Common cutting problems and first checks
Incomplete cut in one area
Check whether the fault repeats at the same die position on every sheet. If it is local, inspect the rule edge, its seating, the rubber and the counter plate there; local make-ready often suffices. Repeatedly raising overall pressure leaves the cause untouched and damages rules and counter plate elsewhere.
Fuzzy or dusty cut edges
Check edge wear, whether the edge type suits the material, pressure and sheet hold-down. Tell unseparated fibres apart from coating cracks. Keep the sample and mark its sheet position, so die maker and operator judge the same spot.
Cracking along the fold
Check board construction, grain direction, coating or lamination, creasing rule height and channel size together. If cracking began after a board change, recalculate the crease match even with an unchanged drawing. Note whether the crack runs with or across the grain.
Waste stays in or the sheet breaks up early
Inspect rubbering, narrow waste areas, nicks and stripping layout. Weak nicks release parts early; overly strong ones hinder separation. Each change affects the others, so assess the whole sequence from cutting to stacking.
Sheets cling to the rules
Suspect the rubbering first: collapsed or hardened rubber no longer pushes the material off. Check rubber height against the rule edge and its placement by zone; if needed, renew the rubber in the affected zone only.
Cuts drift against the print
Compare the approved dieline, sheet layout and press references. A constant shift points to a file or setup difference; a shift that varies sheet to sheet points to feeding, material or print variation. Record the measured shift in millimetres, apart from interpretation.

Die life, maintenance and storage
Die life depends on conditions as much as impression count: material abrasiveness, pressure, counter plate condition, rubber fatigue and handling knocks. For that reason no fixed figure is given for die life; coated or abrasive materials may need earlier maintenance. Give the expected run length when asking for a quotation: a short job and a very long run need different rule durability.
- Clean the die after the run, removing paper and board scraps trapped between the rules.
- Mark dented, loose or chipped rules and collapsed rubber.
- Store the die on a dedicated rack with no load on the rule edges; moisture and knocks are the main risks.
- Label the die with job name, revision number and material, and keep its maintenance history on a die card.
For a repeat order, confirm the die matches the current print and material; the product name can stay while the drawing revision changes. Local damage usually needs only a rule or rubber renewal; a damaged dieboard, changed design or new production requirement calls for a new die.
The maintenance and storage guide develops the inspection and repeat-use workflow.
What sets the price of a cutting die?
The work inside a die sets its price more than its outer size; two dies of equal size can involve very different labour. The main cost items:
- Total rule length: combined cut, crease and perforation lines.
- Bending density: tight radii, small details and the number of joints.
- Ups and die size: sheet layout and dieboard size.
- Rule specification: thickness, height, edge type and coating.
- Auxiliary tooling: crease counter, stripping and blanking parts.
- Rubbering and lead time: rubber zones, hardnesses and delivery urgency.
For a quotation that can be assessed, send in one message:
- Approved, dimensioned dieline and revision number; without a drawing, a sample and dimensions.
- Material name, measured caliper and any coating or lamination.
- Press type, die chase size or usable cutting area.
- Required operations: cutting, creasing, perforating, kiss-cutting.
- Number of ups, sheet size, grain or flute direction and print reference.
- Delivery scope: die, crease counter and stripping parts.
- Run length, expected repeat orders and delivery date.
Compare quotations on the same scope: a cutting die alone, a full station set and finished die-cut products are different purchases. Where information is open, ask which assumption the quotation uses. Send your file for cutting die production in Istanbul; the average reply time during business hours is 14 minutes.
The guide to cutting-die cost factors helps compare the scope behind quotations.
Frequently asked questions
1What size is a cutting rule in mm?
The standard flatbed cutting rule for carton and packaging work is 23.80 mm high. Thickness is given in points: 2 pt (0.71 mm) is most common for folding cartons and labels, and 3 pt (1.07 mm) is widely used for corrugated. The barcode cutting rule for sheet labels is 12 mm high and 1.5 pt thick.
2What does “point” mean for a cutting rule?
The point (pt) is the trade unit of rule thickness: 2 pt is 0.71 mm, 3 pt is 1.07 mm and 4 pt is 1.42 mm. It is independent of height, so an order states both separately for each die line.
3How does a laser-cut die differ from a traditional one?
In a laser-cut die, a CNC laser cuts the dieboard slots: their width stays constant along the line, tight turns follow the drawing closely and the rule sits tight. Hand-sawn slots depend more on the die maker’s skill, and their width can vary.
4How long does it take to make a cutting die?
Lead time depends on rule length, bending density and auxiliary tooling. At İkram Lazer, standard-size box and label dies are produced in 4–18 hours, and custom dies and large BOBST sets in 1–2 business days. Exact timing is confirmed after the file and material details are reviewed.
5Can the same die cut different materials?
With the same cutting outline, a die can often run material of similar caliper. When caliper or ply structure changes, crease height, channel size and rubber are rechecked; a thicker board may need a new crease counter.
6Can I send an old package instead of a drawing?
Yes. An opened old box or sample is used for measuring. Because a used sample may be worn or stretched, its dimensions are first drawn up, and the die is made from that approved dieline.
7Is a cutting die the same as an embossing die?
No. A cutting die cuts material and forms fold and tear lines; an embossing die raises or recesses the surface with matching male and female tools. One package can use both, each specified separately in the order.
8What should I send İkram Lazer with a die request?
Send the dieline (PDF, AI or DXF) or a sample, the material name and caliper, press type, required operations and quantity. İkram Lazer makes flatbed steel rule cutting dies for print and packaging; the average first reply during business hours takes 14 minutes.
The images are representative generated illustrations; they do not show the İkram Lazer workshop or a customer job. Dimensions are starting values; the final choice is made with the material, press and counter system.
