Wallet cutting-die sets for body panels, banknote sections, card pockets and linings
Leather wallet cutting dies

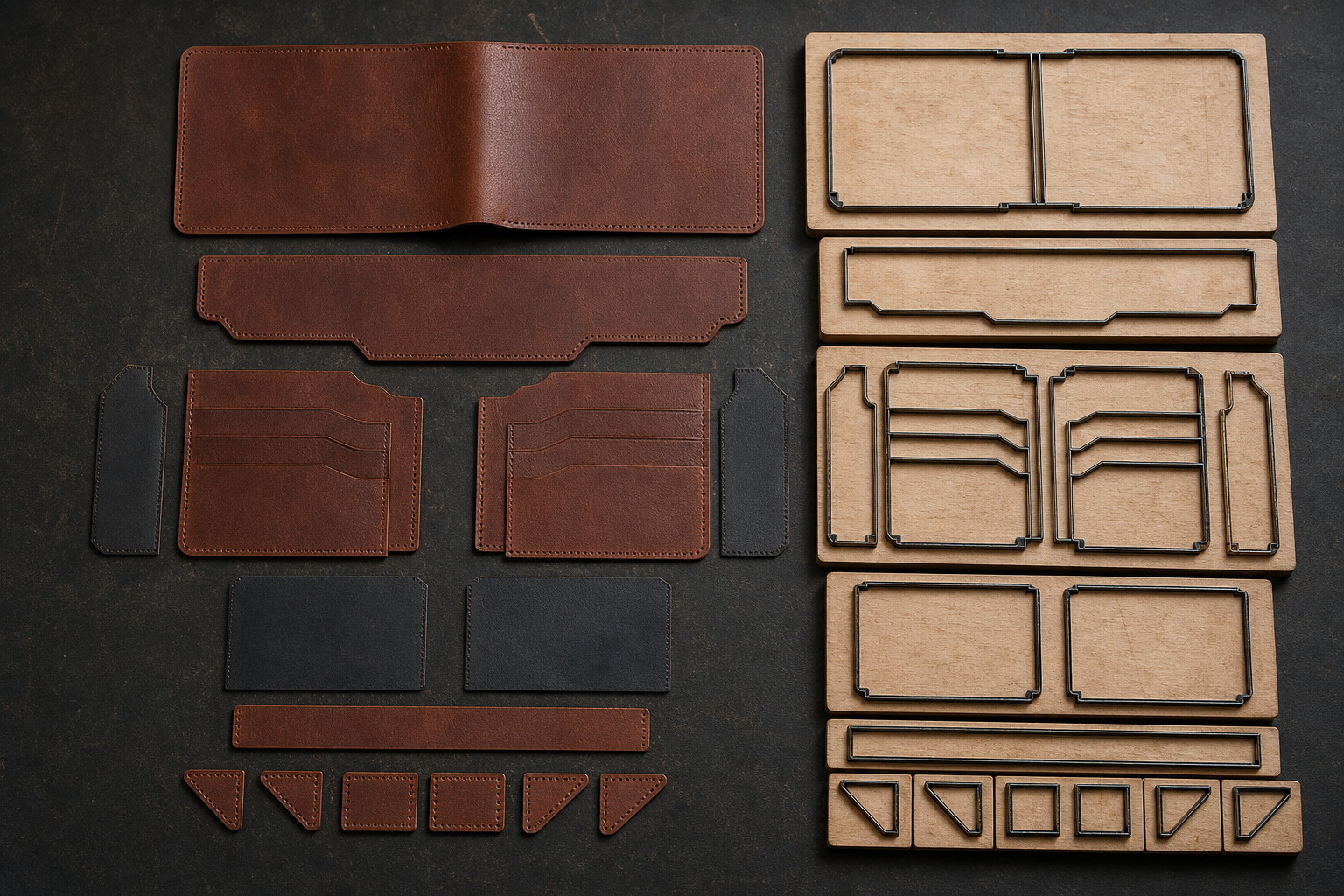

A leather wallet cutting die is not one generic outline for a finished wallet. It is a coordinated tool set for the body panel, centre piece, banknote section, left-right card pockets, pocket liners, binding and reinforcement parts that build the approved model. Every component is assessed separately for fold direction, visible face, stitching or turn allowance and alignment with the other layers.
Which components belong in a wallet cutting-die set?
Bifold, trifold, zipped, flap and card-focused wallets do not share one component architecture. The production set contains only the approved parts required by the model; pockets that look similar are not automatically treated as identical.
- Main body and outer cover panel
- Banknote section and body lining
- Left-right credit-card pockets and entry pieces
- Pocket-bag and closing linings
- Centre pieces, binding strips and small reinforcements
Why are card pockets and banknote sections checked separately?
When card-pocket layers overlap, the entry opening, stitch line and pocket depth must work together. The die repeats only the approved flat geometry; it cannot by itself determine card access, layer build-up or assembly performance. Left-right pockets, visible edges and layer order must be explicit in the technical set.
- Card-entry opening versus pocket depth
- Alignment of overlapping pocket layers
- Left-right or mirrored-component control
- Banknote opening and fold direction
- Separate naming for leather and lining parts
Are the cut line, turn allowance and skiving zone the same?
No. The die creates the supplied cutting contour. Turn allowance, stitching allowance and edge-skiving zones belong to later wallet-making operations and are not added unless they are represented in the approved cut geometry. A material or folding-method change can make a direct copy of an old component unsuitable.
- Cut contour separated from finished edge
- Turned-edge and stitching-allowance notes
- Skiving zone treated as separate process data
- Snap, zip and hardware references
- Visible-face and material-direction marks
What should be sent for a wallet-die quote?
A separated 1:1 technical pattern set is the safest starting point. A finished wallet or photograph explains the model but does not verify every cutting dimension. Send the actual leather, synthetic-leather and lining samples together with the required quantity of each component.
- Component-based PDF, AI or DXF drawings
- Physical component set or dimensionally verified old die
- Leather, synthetic-leather and lining samples
- Wallet type, pocket count and bill of components
- Stitching, fold, notch, hole and direction notes
Frequently asked questions
1Can a cutting die be made from a finished wallet?
A finished product supports initial review, but production needs 1:1 component patterns, a physical component set or a dimensionally verified old die.
2Can one die cut every card pocket?
Only when the geometries are genuinely identical. Left-right direction, pocket depth, entry shape or layer order can require separate components.
3Can the die include stitching holes?
Dimensioned holes shown as cut features can be assessed after material and process suitability are confirmed. A stitch line is not automatically a cutting line.
4Are skiving and edge turning included?
No. This page covers steel cutting dies for flat parts. Skiving, turning, stitching and assembly are separate operations whose allowances must be supplied in the drawing.
5Do women's, men's and card wallets need separate pages?
No. Query variants do not need separate URLs; wallet type, component list and layer architecture are handled within this service.
