Upper dies for hide-quality zones, stretch direction and left-right pairs
Shoe-upper leather cutting dies

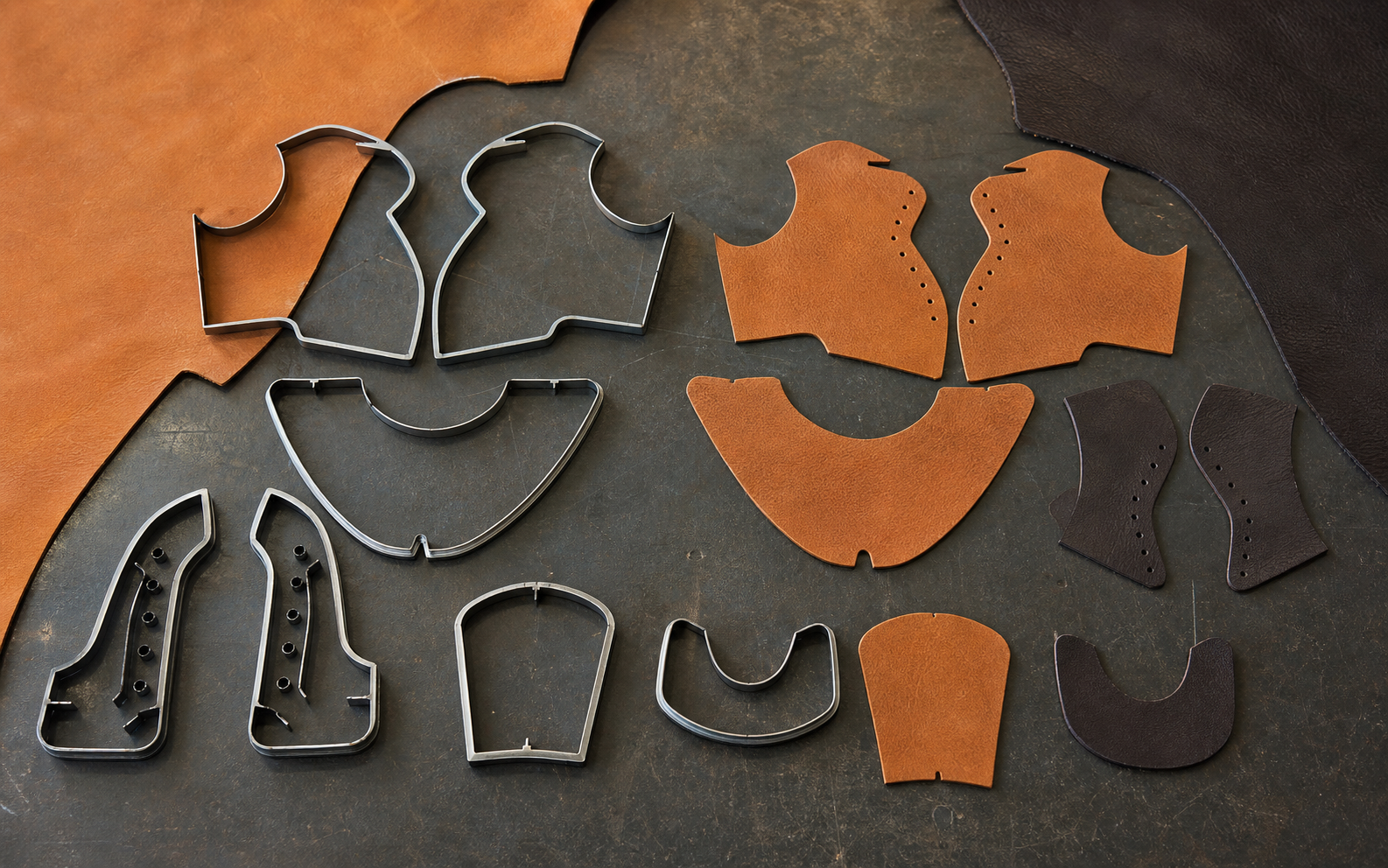

Shoe-upper leather cutting dies reproduce the components that form the upper section of footwear. A vamp, quarter, tongue, eye-stay and collar may use the same hide while requiring different face, direction, left-right and stitching references. This page covers upper components cut from natural or synthetic leather, not sole tooling.
Which shoe-leather components can receive a die?
An upper is not one component. Depending on the style, the vamp, quarters, tongue, eye-stay, collar and decorative overlays are cut separately. Trainers, formal shoes, boots, safety footwear and sandals use different names and shapes, but every knife represents an approved technical profile.
- Vamp and toe-area components
- Inner and outer quarters
- Tongue and eye-stay pieces
- Collar and ankle overlays
- Decorative leather strips and reinforcements
How are hide zones and stretch direction handled?
The backbone, belly and edge zones of a natural hide do not have uniform firmness. The knife cannot identify a quality zone; direction and face marks guide the cutting operator during placement. For synthetic leather, roll or sheet direction, face texture and stretch axis are reviewed.
- Visible face and reverse-side identification
- Component direction against the stretch axis
- Left-right marking for inner and outer feet
- Operator responsibility for avoiding hide defects
- Roll and pattern direction in synthetic leather
Pairing, size sets and stitching references
Right and left components are not assumed to be simple mirrored drawings; inner and outer details are checked against the approved model. Stitching notches, lace holes and assembly marks remain separate from the cutting line. The size range must arrive as customer-approved drawings or samples.
- Left-right mirror and inner-outer review
- Approved upper profile for every size
- Stitching and assembly notches
- Lace, hardware and assembly holes
- Component name and footwear-size marking
What files and samples are required?
A photograph of a shoe does not define cutting geometry. Send each upper component as a separate 1:1 drawing or physical sample. The actual leather or synthetic-leather sample, stitching allowance decision and cutting press also affect assessment. Sole, insole and sockliner tooling belongs to the main footwear service.
- Component-level PDF, AI or DXF drawing
- Vamp, quarter and tongue samples
- Actual leather or synthetic-leather sample
- Size range, left-right and set quantity
- Stitching, hole, notch and direction notes
Frequently asked questions
1Does a shoe-upper leather die also cut the sole?
This page covers footwear uppers. Outsole, midsole, insole and sockliner tooling is assessed through the main shoe-cutting-die service.
2Why does natural leather need a direction mark?
Stretch and firmness direction can affect component behaviour. The mark helps the cutting operator position the part against the approved axis.
3Are separate knives needed for right and left uppers?
They may be, depending on inner and outer details. Right and left components are checked from approved drawings rather than assumed automatic mirrors.
4Can an upper die be made from a shoe photograph?
No. A photograph shows the style, not production geometry. Every component needs a 1:1 drawing or physical sample and size information.
